Shelves

• Filing shelves are one piece with integral back stop.
• Shelves are slotted 1" O.C., to accept Universal File Dividers.
• Full depth pass-through Shelf for oversized media available.
• Shelves and accessories canbe adjusted vertically 1/2" O.C.

Drawers

• Security Drawer is equipped with key lock.
• Suspension File Drawer is full height to store files left to right.

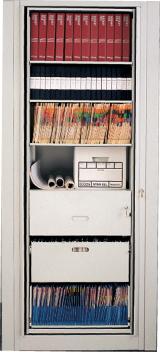

• Multimedia Drawer is shown here at the bottom position of the unit. Accommodates end tab folders or hanging folders with hanger bar included.
• 3" high Drawer (not shown) is slotted 1/2" O.C. to accept front-to-back dividers.

Vinyl trim

• The soft, pliable vinyl trim conceals the gap between door and post while providing hand and jewelry protection when rotating the inner cabinet.

Base mechanism

• Designed to allow easy relocation of units without disassembly and to increase/decrease ranges of Rotary Files quickly and economically.
• Bearing Raceway Assembly is factory lubricated for life.

Top assembly

• 1" diameter steel pin, welded to the center of the Rotor Top, rides in a steel bushing in the Canopy Top and serves as the pivot and contact point. No lubrication is required for the life of the unit.

Universal file divider

• The same Universal File Divider may be used in Letter as well as Legal size units.

Suspensions

• Top quality Accuride® suspensions are used for all roll-out accessories.
• All accessories, except the Posting Shelf, are secured with an easy operating thumb latch. A built-in friction pad secures the Posting Shelf.

Lock

• Universal lock design provides independent locking from either side for full security in either the open or closed positions.

Other benefits and features

• All exposed surfaces are sanded smooth prior to application of the powder based epoxy paint in a smudge resistant matte finish.
• ADA-friendly design minimizes safety hazard of aisle obstructions because the Rotary File cabinet maintains a fully flush front, back and sides.
